Chapter 6, LTP manual

Although this version of the program, LTP230D, does a reasonably good job of doing accurate on-line amplitude and slope analysis, experience in our group has indicated that subsequent off-line analysis can often improve the analysis accuracy. Doing Reanalysis with the LTP program is like reliving the experiment in ‘fast forward’ mode without any interruptions between ADsweeps.

To use the LTP program for off-line reanalysis, either repeat the procedure for going to the MS-DOS Mode of Windows 95/98 (Section 2.4.1), or the ‘Real’ Command Line DOS with Windows 3.xx (Section 2.4.3).

Alternatively, run off-line reanalysis by clicking on Win95/98 desktop acquisition icon (Section 2.4.2).

Finally, run off-line reanalysis directly from the Windows GUI by going to the DOS compatibility box and running the program (see Section 2.4.2 for Windows 95/98, Section 2.4.4 for Windows 3.xx, Section 2.4.6 for Windows ME, and Section 2.4.8 for Windows NT/2000/XP).

The only problem with reanalyzing in the DOS compatibility box is that because of a bug in Windows 3.xx/95/98/NT/2000 and XP DOS extender, Windows does not report the correct amount of memory available to the LTP program and therefore fewer ADsamples/sweep are loaded and analyzed. If LTP230D is run on a 64 MB Windows 95/98 computer in MS-DOS mode, 1,000,000 samples/sweep can be analyzed. However, if LTP230D is run on any Windows 3.xx/95/98/NT/2000 and XP computer in the DOS compatibility box, then only 50,000 samples/sweep will be analyzed.

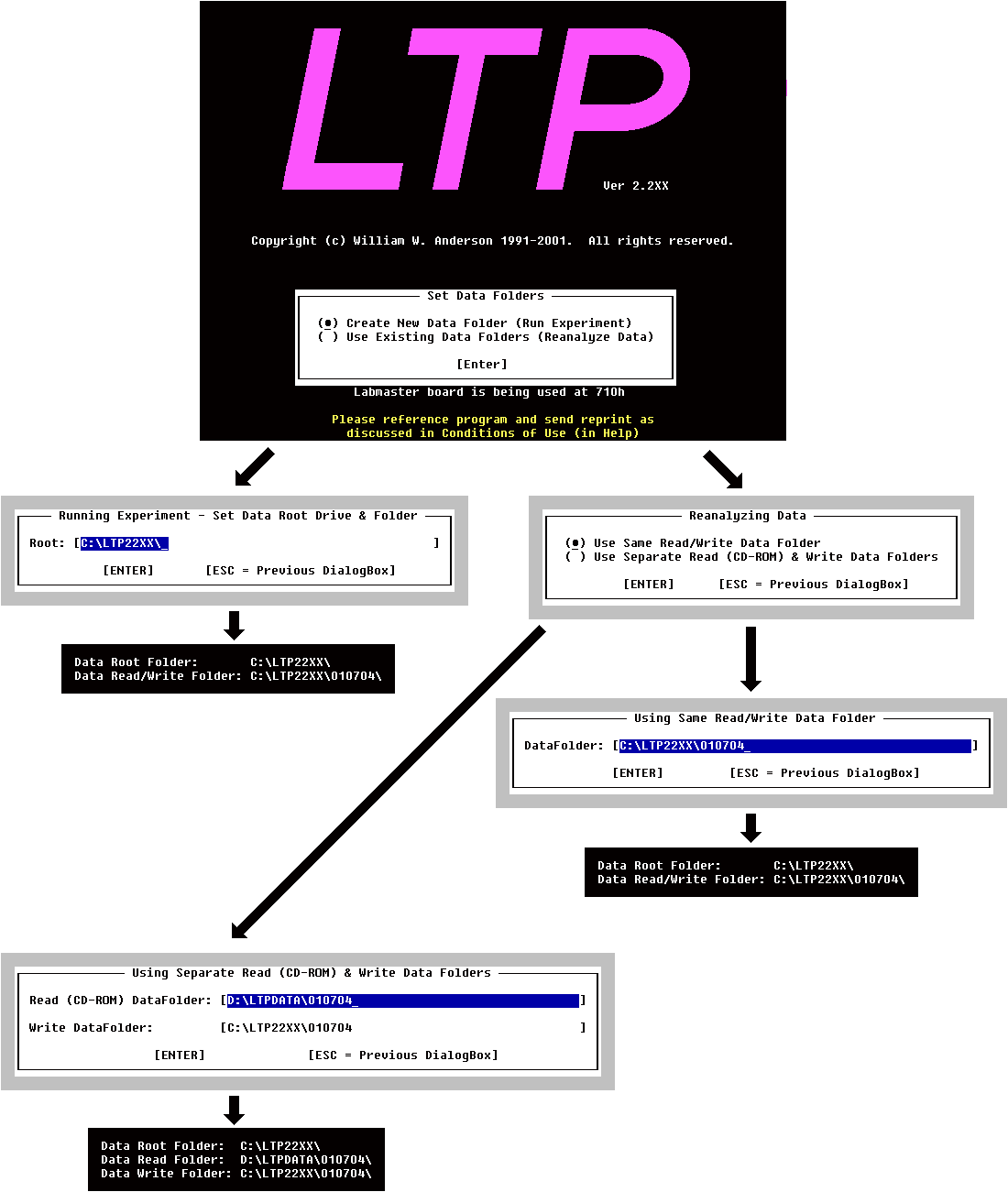

When starting the LTP Program for reanalysis, choose Use Existing Data Folders (Reanalyze Data) in the Set Data Folders dialog box in the splash screen (Fig. 6.1, top).

This calls up the Reanalyzing Data dialog box (Fig.6.1, next panel down on right) which allows you to either Use Same Read/Write Data Folder if reanalyzing ADsweep files from the hard drive, or Use Separate Read (CD-ROM) & Write Data Folders if reanalyzing ADsweep files that have been previously saved on a read-only CD-ROM. Because you cannot write the analysis (*.AMP) and LaserJet (*.LJ) files to the read-only data folder on the CD-ROM, a different Data Write folder on your hard disk must be chosen.

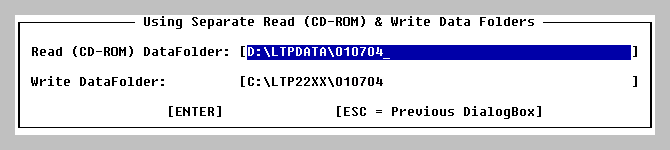

To do this another dialog box is presented, Using Separate Read (CD-ROM) and Write Data Folders (Fig. 6.1, bottom dialog box), which allows you to type in the Read (CD-ROM) Data Folder and the Write Data Folder.

Fig. 6.1. The Dialog boxes encountered when starting the LTP Program to reanalyze data.

As with the Reanalyzing Data dialog box in Fig. 6.1, this Reanalyzing Data dialog box allows you to pick Use Same Read/Write Data Folder choice to present the Using Same Read/Write Data Folder dialog box in Fig 6.2.2. Changing this dialog box can set the Read/Write drive and data folder simultaneously and would be used to reanalyze data from a hard drive.

Alternatively, choosing Using Separate Read (CD-ROM) & Write Data Folders in the Reanalyze Data dialog box (Fig. 6.2.1) allows you to set the separate Read and Write data drive and data folder by presenting the Using Separate Read (CD-ROM) & Write Data Folders dialog box in Fig. 6.2.3. Changing this dialog box can set the Read data drive and folder to say D:\LTPDATA\010704 on the read-only CD-ROM, and the Write data drive and folder to say C:\LTP22XX\010704 on the hard drive. This is primarily used when reading the ADsweep data from a read-only CD-ROM, while writing the analysis results (*.AMP files, *.LJ? files, as well as newly averaged, blanked and filtered ADsweep files) to the hard disk. Fig. 6.2.4 shows the message line about what the Read and Write Data Folders are after setting the Separate Read (CD-ROM) and Write Data Folders.

In version 2 of the LTP Program, when the program is run in Reanalysis Mode, the menus and dialog boxes have been simplified to only provide the minimal information required.

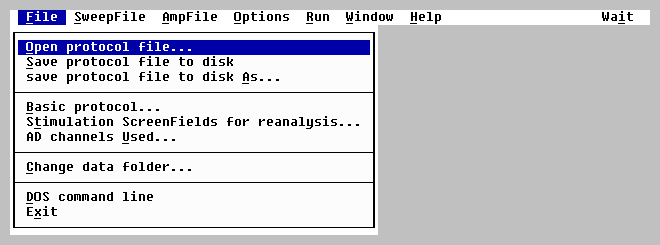

Thus the Protocol File menu in Reanalysis Mode (Fig. 6.3.1) the AutoCreate new data Folder... menu choice in the acquisition mode (Fig. 3.4.1) is not present because automatically creating new data folders only makes sense during acquisition. You can still create a new data folder during reanalysis using the Change data folder... menu choice, but you specifically have to write in a name for the new folder.

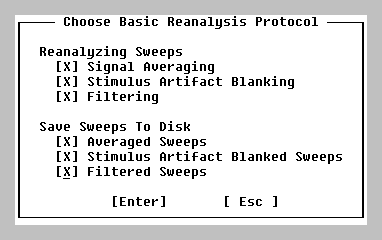

In the Reanalysis Mode, the Choose Basic Reanalysis Protocol dialog box (Fig. 6.3.2) is greatly simplified over the Choose Basic Online Protocol dialog box in acquisition mode (Fig. 4.2.1). The Slow Repetitive Sweep section is gone, because you only load ADsweep files to, and reanalyze in, the P0sweep (the reanalysis array). The Fast Repetitive LTD Stimulation section is absent, as is the Enable Train Sweeps section. Furthermore, the Signal Averaging, Stimulus Artifact Blanking, and Filtering are not done on Pulse or Train Sweeps but only on the Reanalyzing Sweeps loaded. Similarly, Raw Sweeps cannot be resaved (this wouldn't make any sense) and only the Averaged, Stimulus Artifact Blanked, and Filtered of the Reanalyzed Sweeps, not the Pulse or Train sweeps, can be saved to disk.

Furthermore, when doing reanalysis using the stimulation screen fields for the reanalysis stimulation information (see Section 6.4) and not the stimulation in the ADsweep file header (see Fig. 4.14.4.1), the simplified Stimulation dialog box shown in Fig. 6.3.3 is used. Since only the Sweep P0 array is loaded during reanalysis, there is no need to have the Sweep P1, T0 or T1 stimulation information present.

Similarly, when doing Reanalysis of Pulses in Trains, because ADsweep files are only loaded into the Sweep P0 array, it is not necessary to set this information for Sweeps P1, T0 or T1 as in the Analysis of Pulses in Trains dialog box (Fig. 4.9) used in the Acquisition Mode. To call up the Reanalysis of Trains dialog box, use the menu command (Fig. 3.4.3):

AmpFile -> Reanalysis of pulses in Trains

During reanalysis, the Miscellaneous Page is also simplified (Fig. 6.3.5.), except when reanalyzing ASCII ADsweep files (Fig. 6.9).

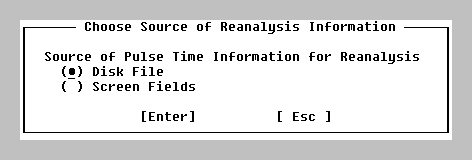

First one has to choose whether the time of the start of the S0, S1 or Rm pulse is taken from the disk file, or from the Pulse Stimulation Screen fields. Doing reanalysis in the same program that stimulates and acquires data has the added advantage of allowing one to use the Pulse Stimulation fields like a stimulus template and allows you to place the S0, S1 or Rm pulses at whatever time you want. To determine the source of the Pulse Stimulation information, use the menu command (Fig. 3.4.3):

AmpFile -> Reanalyze suing ScreenField or DiskFile information

During on-line analysis the pulse time information contained in the Pulse Stimulation Screen Fields in the Pulse Stimulation Windows is used. During off-line Reanalysis, normally the pulse time information is obtained from the Disk File (the default).

However, if one wants to reanalyze with a different stimulation pattern, say only the second synaptic potential of a paired pulse stimulation, one can choose the Source of Pulse Time Information for Reanalysis to be the Screen Fields and set the PrePulseDur field in the Pulse Stimulation Window (Fig. 3.1.2) to the time at which this second pulse occurs. The second synaptic potential will correctly be analyzed relative to the time set in the at the PrePulseDur field.

Sometimes you want to do then next reanalysis on the same calculation graph containing previously analyzed data points, and sometimes you want to do the next reanalysis on a new cleared calculation graph. This can be controlled by using the menu command (Fig. 3.4.3):

AmpFile -> AutoClear Amp/Slope graphs for next reanalysis…

If Yes is chosen, then doing the next reanalysis will not only clear the Amp/Slope Calculation graphs, but will also start a new Amplitude/Calculation (*.AMP) file.

If No is chosen, then doing the next reanalysis Amp/Slope calculation points will be superimposed on the points already present on the Amp/Slope Calculation graphs, and the new data points will be appended to the present Amplitude/Calculation (*.AMP) files.

To reanalyze data use the pulldown menus and dialog boxes to choose those files you wish to reanalyze. Remember, every data file is 1 sweep (or 1 averaged sweep), so you can select only those sweeps you wish to reanalyze. To do this enter the menu command (Fig. 3.4.3):

AmpFile -> Reanalyze AD sweep files

Once analysis has begun, it can be temporarily halted anytime by pressing the SPACE bar. The detection values can be changed and that will change the calculation of the slope in the current ADsweep file. The ADsweep graph values can also be changed, and different Windows can be chosen.

Pressing the SPACE bar again will move to the next ADsweep so this will allow single stepping through all the ADsweeps and customizing each slope detection if need be. (However, it is less biased to have one detection setting for reanalyzing the whole experiment.)

Pressing F3 will resume or Continue the reanalysis at the normal Sweep Repeat Period.

Remember that during a reanalysis run, changing the detection parameters will change the amplitude/slope of last analyzed ADsweep, and will change that value in the Amp/Slope (*.AMP) file. Therefore if you are changing detection parameters ‘between’ reanalysis runs, do so on the first sweep of the next reanalysis run and not on the last ADsweep of the previous reanalysis run (e.g. supposedly ‘between’ reanalysis runs). Althernatively you can clear the calculation graphs before proceeding.

Also remember to increase the amplitude sensitivity as much as possible, and set AutoReset Timebase to Off to be able to zoom into the appropriate waveform times for a more accurate reanalysis (see Section 4.10).

In LTP230D there has been an effort to improve interaction with other data acquisition and analysis programs.

LTP230D can now reanalyze ASCII sweep files (with or without a header). Therefore ASCII sweep files from any program can be analyzed with LTP230D.

We have also made two utility program that can convert multisweep ASCII files into many single sweep ASCII sweep files that can be imported into LTP230D for reanalysis.

Atf2swps.exe converts an Axon Text file (*.ATF) such as generated by Axon Instruments' AxoScope or pClamp8's Clampex program into many single sweep ASCII files that can be imported into LTP230D for reanalysis. Therefore LTP230D can also indirectly access gap-free, episodic stimulation and fixed-length event driven Axon Binary Files (*.ABF) after they are converted to an Axon Text File.

Dv2swps.exe converts a multisweep ASCII file exported by DataView (a program written by W.J. Heitler) into many single sweep ASCII files that can be imported into LTP230D. Because DataView can convert tape recorder type files such as gap-free Axon Binary Files (*.abf), CED Signal (*.cfs) files, CED Spike2 (*.smr) files, ASCII text files, or Raw binary files, LTP230D can indirectly access these files as well, and can analyse them using the LTP Program's particular analysis capabilities.

In addition, LTP230D can also save reanalyzed ASCII sweep files. This is useful for saving ASCII sweep files obtained by other acquisition programs where LTP230D can be used to remove stimulus artifacts, average several sweeps, or filter the sweeps.

If the LTP Program is started up in Reanalysis Mode, LTP230D has the new capability of reanalyzing general ASCII ADsweep files. When the AmpFile menu is brought down, the Set reanalysis ADsweep file type... can be chosen (Fig 6.7).

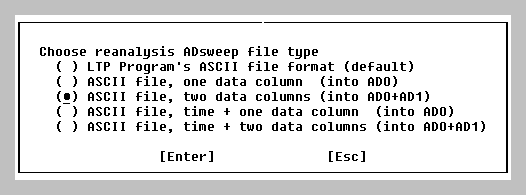

Choosing the the Set reanalysis ADsweep file type... option calls up the Choose reanalysis ADsweep file type dialog box (Fig 6.8). This allows you to change from the default LTP Program's ASCII file format (for LTP114J and earlier, or for LTP222A and LTP230D) to 1) one data column ASCII, 2) two data columns ASCII, 3) a time column (on the left) plus one data column ASCII (see the top of Fig. F2) , or 4) a time column (on the left) plus two data columns ASCII (see the top of Fig. E2).

	1.	Set the ADinterval (in usec) at which the acquisition was obtained
	2.	Set the AD DataType Units (usually mV or pA) for each column (e.g. AD channel) in the ASCII ADsweep file
	3.	Set the AD gain either as straight gain or as AD Units/V (see Section 2.6.1) for each column (e.g. AD channel) in the ASCII ADsweep file
	4.	Set the Number of Header Lines to Skip (NumHdrLines to skip)

Even though the ASCII ADsweep files may contain a time column, LTP230D ignores this time column and only gets the sample interval from the ADinterval field.

You set the AD gain so that the data in the ASCII ADsweep file is not 'amplified' at to high a level (eg truncated at positive or negative voltages), or 'amplified' at to low a level (eg at the bit level where individual bits can be seen). Basically the data values have to 'fit' into 16 bits, the level at which reanalysis is done. Also, even if the data was obtained at the 12 bit level, because reanalysis is done at the 16 bit level, you have greater latitude over which to set the gain as as long as the data is not truncated or 'bitty'. However, it is important to realize that the actual gain you set does not affect the calculations, the 'correct' gain only insures that the data will not be truncated or 'bitty'. If you have the gain at which you recorded the data, using this will be fine.

Note that when reanalyzing with LTP230D, if a header is present in the general ASCII ADsweep file (see top of Figs. E2 and F2 ), it will have to be skipped.

Fig. 6.9. The Miscellaneous Page as it appears during Reanalysis, with general ASCII ADsweep file type chosen, and two data columns (e.g. AD channels), with or without the optional time column. The fields you have to enter are: ADinterval, ADx DataType Units, ADx Gain or ADx Units/V and NumHdrLines to skip.

Because there is no stimulation information in a general ASCII ADsweep file, the LTP Program has to provide this stimulation information. It does this by using a 'stimulus template' and choosing the source of stimulation information from Screen Fields rather than the Disk File (see Section 6.4).

LTP222A could normally save reanalzed files that had been blanked, filtered, or blanked+filtered ADsweeps obtained from LTP114J or LTP222A/LTP230D ASCII ADsweep files, and saved as LTP222A/LTP230D ASCII ADsweep files (which contain the special LTP114J or LTP222A/LTP230D headers; see Section 4.14.4).

LTP230D can also now save reanalzed files that blanked, filtered, or blanked+filtered ADsweeps that were obtained from general ASCII ADsweep files (with our without a header), and saved as general ASCII ADsweep files.

This is primarily for using LTP230 to remove the stimulus artifact blanks from general ASCII ADsweeps for later reanalysis with another program, but also to have LTP230D signal average and digitally filter ASCII ADsweep files (although a lot of other programs signal average and digitally filter).

To activate saving reanalyzed averaged, blanked and/or filtered ASCII ADsweep files, do the same as when reanalyzing LTP114J or LTP222A/LTP230D ASCII ADsweep files (see Section 6.3 and Fig. 6.3.2).

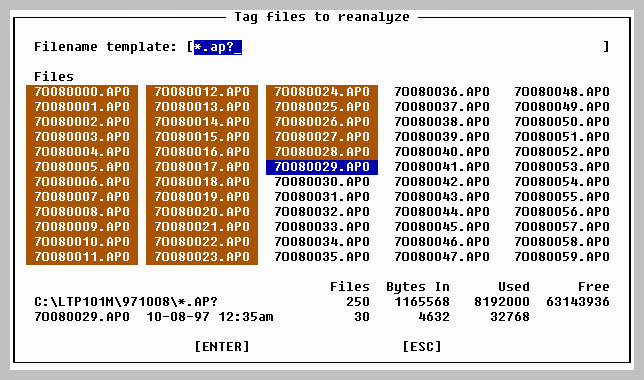

	TAB to go to the files to choose from.
	't' to Tag those files for reanalysis (or Ctl-t to Tag all files)
	'u' to Untag those files for reanalysis (or Ctl-u to Untag all files)

	finally Enter to begin the reanalysis.
